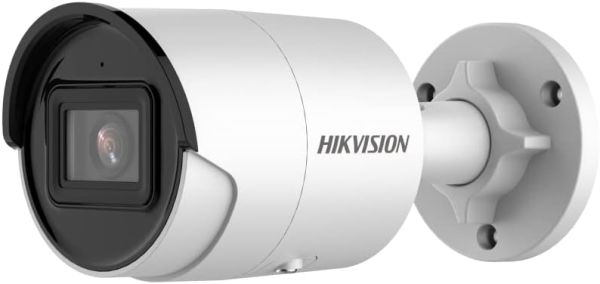

Hikvision DS-2CD2083G2-I(U) 8 MP AcuSense Fixed Bullet Network Camera

Camera Specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens Specifications

• Lens Type: Fixed focal lens (2.8mm, 4mm, and 6mm optional)
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 107°, Vertical FOV 57°, Diagonal FOV 128°
  • 4 mm: Horizontal FOV 87°, Vertical FOV 46°, Diagonal FOV 105°
  • 6 mm: Horizontal FOV 54°, Vertical FOV 29°, Diagonal FOV 63°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• DORI (Detection, Observation, Recognition, Identification):
  • 2.8 mm:
    • D: 88 m, O: 35 m, R: 17 m, I: 9 m
  • 4 mm:
    • D: 108 m, O: 43 m, R: 22 m, I: 11 m
  • 6 mm:
    • D: 177 m, O: 70 m, R: 35 m, I: 18 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video Specifications

• Main Stream:
  • 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream (Supported under certain settings):
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Types: Baseline Profile, Main Profile, High Profile
• H.265 Types: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264 (*Third stream is supported under certain settings)
• Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream

Audio Specifications

• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32 to 192 Kbps
  • MP3: 8 to 320 Kbps
  • AAC-LC: 16 to 64 Kbps
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network Specifications

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users (3 user levels: administrator, operator, user)
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+

Image Settings

• Image Parameters Switch: Yes
• Adjustable Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, supports microSD card (up to 512 GB)
• Built-in Microphone: Yes
• Reset Key: Yes

Event Specifications

• Basic Event: Motion detection, video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection, face detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General Specifications

• Power:
  • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W
• Dimension: Ø70 mm × 161.7 mm (Ø2.8 × 6.4")
• Material: Aluminum alloy body, plastic bubble
• Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Weight: Approx. 495 g (1.1 lb.)
• With Package Weight: Approx. 759 g (1.7 lb.)

Environmental Specifications

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Language Support

• 33 languages including English, Russian, Spanish, French, Arabic, Chinese, Japanese, and more.

Certifications & Approvals

• EMC Certifications: FCC, CE-EMC, RCM, IC, KC
• Environmental: CE-RoHS, WEEE, Reach
• Protection: IP67 (IEC 60529-2013)
• Safety: UL, CB, CE-LVD, BIS
