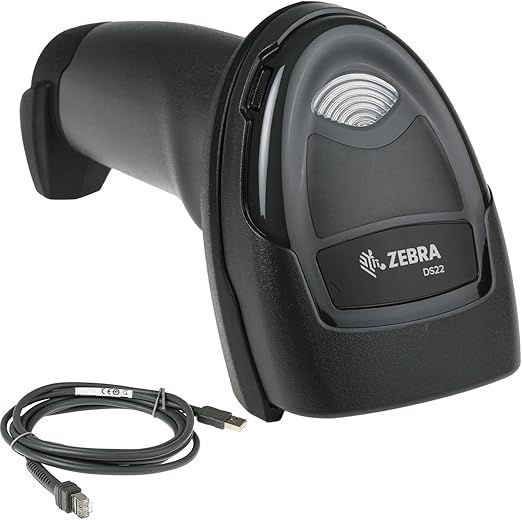

Zebra DS2208-SR Barcode Scanner Specifications

General Information:

• Manufacturer: Zebra Technologies Corporation
• Manufacturer Part Number: DS2208-SR7U2100SGW
• Brand Name: Zebra
• Series: DS2200
• Model: DS2208-SR
• Product Name: DS2208-SR Handheld Barcode Scanner with Stand
• Packaged Quantity: 1
• Product Type: Barcode Scanner Kit

Technical Information:

• Connectivity Technology: Cable
• Scanning Capability: 1D and 2D barcodes
• Image Sensor Type: Imager
• Scan Rate: 30 scans per second
• Scan Pattern: Omni-directional
• Scanner Range: Standard Range
• Scanning Distance: Up to 14.49 inches

Supported Barcode Symbologies:

• 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • Interleaved 2 of 5 (I 2 of 5)
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
• 2D:
  • PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes

Performance Features:

• Field of View:
  • Horizontal: 33°
  • Vertical: 25°
• Reading Angles:
  • Skew: 65°
  • Pitch: 65°
  • Roll: 360°
• Motion Tolerance: 5 in/s
• Maximum Ambient Light: 107,600 lux
• Minimum Print Contrast: 25%
• Maximum Element Resolution:
  • Code 39: 5 mil
  • DataMatrix: 10 mil
  • PDF417: 6.7 mil

Physical Characteristics:

• Form Factor: Handheld
• Color: Twilight Black
• Dimensions:
  • Height: 6.5 inches
  • Width: 2.6 inches
  • Depth: 3.9 inches
• Weight: Approximately 5.70 ounces
• Ingress Protection (IP) Rating: IP42
• Drop Specification: Withstands multiple drops from 5 ft (1.5 m) to concrete

Interfaces and Ports:

• Host Interface: USB
• Cable Type Included: USB
• Stand Included: Yes

Applications and Usage:

• Industries:
  • Retail
  • Industrial
  • Government
  • Light/Clean Manufacturing
  • Logistics
  • Transportation
  • Hospitality
